Technical information

Height (inches)

KTLU2037/91

Chimney connection base

Downloadable documents

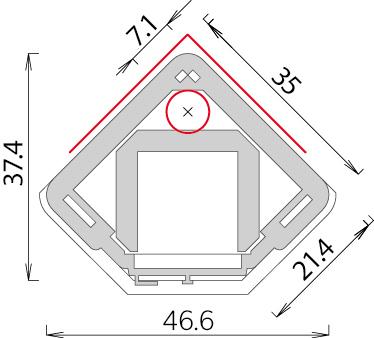

Dimensions (measurements on drawings below are in millimeters)

Width (inches) 46,6
Depth (inches) 37,4
Height (inches) 66,1
Weight (pounds) 4740
Firebox width (inches) 15,7
Firebox depth (inches) 14,2
Bakeoven width (inches) 16,5
Bakeoven depth (inches) 16,9

Heating performance

Energy class A+
Heated area, sq ft (depending on heating requirements) 450-1100
Heat storage capacity, kWh (this is the amount of heat stored in the appliance, not the heat output!) 65,9
Nominal heat output, kW 2,1
Efficiency % LHV 80
Maximum load of wood per 24 hours, lbs 44,1
Heat release time at 100%, in hours (this is how long the heater stays at its hottest) 4,6
Heat release time at 50%, in hours (this how long the heater stays above 50% of its hottest) 19,3
Heat release time at 25%, in hours (this how long the heater stays above 25% of its hottest; aka T25) 31,4

Safety distances to combustibles

Safety distance, back, inches (can be reduced to 3" with a UL/ULC specified heat shield) 14
Safety distance, top (inches) 10
Safety distance, front (inches) 48

Chimney connection and combustion air information

Recommended flue diameter, inches 7-8
