KTU1010/92

Connection below

Downloadable documents

Use manual Energy class

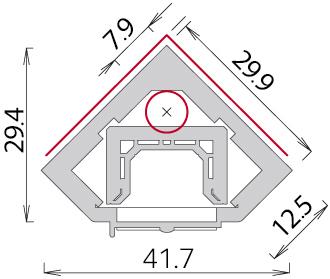

Dimensions
Width, in	41,7
Depth, in	29,4
Height, in	49,6
Weight, lbs	2469
Heat technology
Energy class	A+
Area to be heated, ft²	300-650
Rated power (min-max), kW	1,4
Efficiency, %	91
Maximum amount of wood, lbs	26,5
Heat release time (h) 100%	3,9
Heat release time (h) 50%	13,6
Heat release time (h) 25%	23,4
Safety distances
Safety distance back, in	14
Safety distance side, in	-
Safety distance up, in	10
Safety distance front, in	48
Chimney connection and combustion air information
Recommended flue diameter, ø in	6-7

Technical information
