Technical information

Height, in

KTU2253

Connection below

Downloadable documents

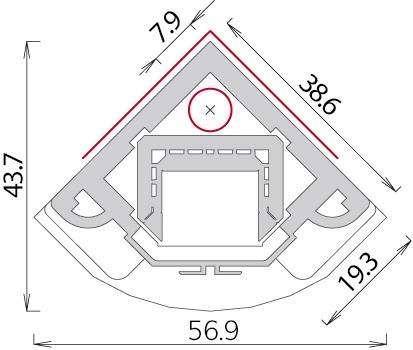

Dimensions
Width, in 56,9
Depth, in 43,7
Height, in 67,3
Weight, lbs 4586

Heat technology
Energy class A
Area to be heated, ft2 450-1100
Rated power (min-max), kW 2,1
Efficiency, % 81
Maximum amount of wood, lbs 44,1
Heat release time (h) 100% 4,9
Heat release time (h) 50% 17,6
Heat release time (h) 25% 29,4

Safety distances
Safety distance back, in 14
Safety distance side, in -
Safety distance up, in 10
Safety distance front, in 48

Chimney connection and combustion air information
Recommended flue diameter, ø in 7-8
