Technical information

Height, in

TLU2480

Connection below

Downloadable documents

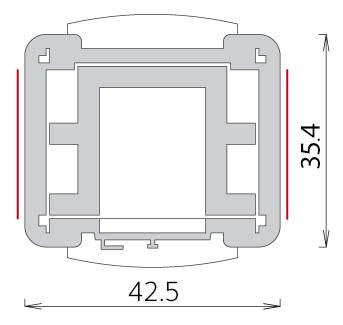

Dimensions
Width, in 42,5
Depth, in 35,4
Height, in 66,1
Weight, lbs 6482

Heat technology
Energy class A+
Area to be heated, ft2 550-1300
Rated power (min-max), kW 2,9
Efficiency, % 81
Maximum amount of wood, lbs 49,4
Heat release time (h) 100% 5,7
Heat release time (h) 50% 21,4
Heat release time (h) 25% 34

Safety distances
Safety distance back, in 20
Safety distance side, in 14
Safety distance up, in 10
Safety distance front, in 48

Chimney connection and combustion air information
Recommended flue diameter, ø in 7-8
