Technical information

Height, in

TLU2637/11

Connection below

Downloadable documents

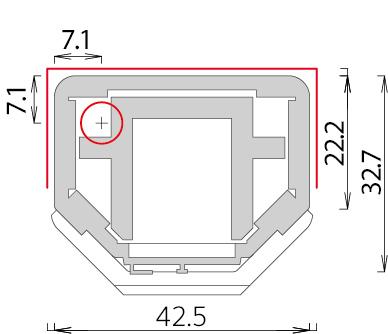

Dimensions

Width, in 42,5
Depth, in 32,7
Height, in 66,1
Weight, lbs 5578

Heat technology

Energy class A+
Area to be heated, ft2 550-1100
Heat storage capacity, kWh 78
Rated power (min-max), kW 2,3
Efficiency, % 82
Maximum amount of wood, lbs 48,5
Heat release time (h) 100% 3,2
Heat release time (h) 50% 19,4
Heat release time (h) 25% 31,4

Safety distances

Safety distance back, in 20
Safety distance side, in 14
Safety distance up, in 10
Safety distance front, in 48

Chimney connection and combustion air information

Recommended flue diameter, ø in 7-8

TLU2637T/11

Top Connection

Downloadable documents

Dimensions

Width, in 42,5
Depth, in 32,7
Height, in 66,1
Weight, lbs 5578

Heat technology

Energy class A+
Area to be heated, ft2 550-1100
Heat storage capacity, kWh 78
Rated power (min-max), kW 2,3
Efficiency, % 82
Maximum amount of wood, lbs 48,5
Heat release time (h) 100% 3,2
Heat release time (h) 50% 19,4
Heat release time (h) 25% 31,4

Safety distances

Safety distance back, in 20
Safety distance side, in 14
Safety distance up, in 10
Safety distance front, in 48

Chimney connection and combustion air information

Recommended flue diameter, ø in 7-8
