Technical information

Height, in

TTU2700/4 XL

Top Connection

Downloadable documents

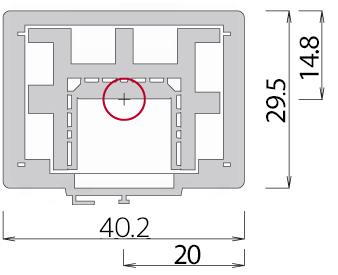

Dimensions
Width, in 40,2
Depth, in 29,5
Height, in 72
Weight, lbs 5688

Heat technology
Energy class A
Area to be heated, ft2 550-1200
Rated power (min-max), kW 2,7
Efficiency, % 79
Maximum amount of wood, lbs 47,6
Heat release time (h) 100% 5.2
Heat release time (h) 50% 21.3
Heat release time (h) 25% 32.5

Safety distances
Safety distance back, in 20
Safety distance side, in 14
Safety distance up, in 10
Safety distance front, in 48

Chimney connection and combustion air information
Recommended flue diameter, ø in 7-8
