Technical information

Height, in

TTU2700

Top Connection

Downloadable documents

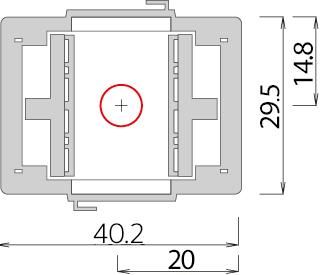

Dimensions

Width, in 40,2
Depth, in 29,5
Height, in 83,9
Weight, lbs 6548

Heat technology

Energy class A
Area to be heated, ft2 650-1400
Rated power (min-max), kW 2,8
Efficiency, % 78
Maximum amount of wood, lbs 47,6
Heat release time (h) 100% 5,1
Heat release time (h) 50% 18,6
Heat release time (h) 25% 29,9

Safety distances

Safety distance back, in 48
Safety distance side, in 14
Safety distance up, in 10
Safety distance front, in 48

Chimney connection and combustion air information

Recommended flue diameter, ø in 8
