TU930

Connection below

Downloadable documents

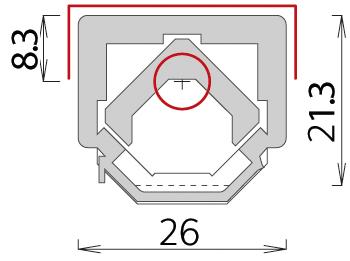

Dimensions
Width, in	26
Depth, in	21,3
Height, in	54,1
Weight, lbs	2112
Heat technology
Energy class	A+
Area to be heated, ft²	300-550
Rated power (min-max), kW	2,0
Efficiency, %	81
Maximum amount of wood, lbs	17,6
Heat release time (h) 100%	3,9
Heat release time (h) 50%	13,2
Heat release time (h) 25%	20,7
Safety distances
Safety distance back, in	20
Safety distance side, in	14
Safety distance up, in	10
Safety distance front, in	48
Chimney connection and combustion air information
Recommended flue diameter, ø in	6-7

Technical information
