Technical information

Height, in

TU1000/92

Connection below

Downloadable documents

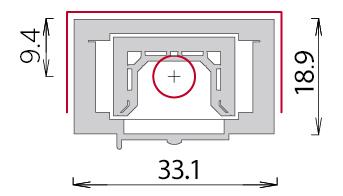

Dimensions

Width, in 33,1
Depth, in 18,9
Height, in 60,2
Weight, lbs 2690

Heat technology

Energy class A+
Area to be heated, ft2 300-750
Rated power (min-max), kW 1,9
Efficiency, % 88
Maximum amount of wood, lbs 17,9
Heat release time (h) 100% 1.9
Heat release time (h) 50% 10.7
Heat release time (h) 25% 18.1

Safety distances

Safety distance back, in 20
Safety distance side, in 14
Safety distance up, in 10
Safety distance front, in 48

Chimney connection and combustion air information

Recommended flue diameter, ø in 6-7
