Technical information

Height, in

TU2200/92

Connection below

Downloadable documents

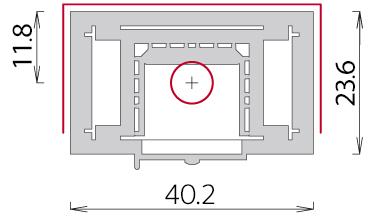

Dimensions
Width, in 40,2
Depth, in 23,6
Height, in 60,2
Weight, lbs 3814

Heat technology
Energy class A+
Area to be heated, ft2 450-1100
Heat storage capacity, kWh 48.5
Rated power (min-max), kW 2,3
Efficiency, % 87
Maximum amount of wood, lbs 28,7
Heat release time (h) 100% 4.4
Heat release time (h) 50% 17.5
Heat release time (h) 25% 26.2

Safety distances
Safety distance back, in 20
Safety distance side, in 14
Safety distance up, in 10
Safety distance front, in 48

Chimney connection and combustion air information
Recommended flue diameter, ø in 7-8

TU2200T/92

Top Connection

Downloadable documents

Dimensions
Width, in 40,2
Depth, in 23,6
Height, in 60,2
Weight, lbs 3814

Heat technology
Energy class A+
Area to be heated, ft2 40-100
Heat storage capacity, kWh 46.9
Rated power (min-max), kW 2,5
Efficiency, % 87
Maximum amount of wood, lbs 28,7
Heat release time (h) 100% 4.3
Heat release time (h) 50% 14.4
Heat release time (h) 25% 25.1

Safety distances
Safety distance back, in 100
Safety distance side, in 200
Safety distance up, in 250
Safety distance front, in 1000

Chimney connection and combustion air information
Recommended flue diameter, ø in 7-8
