Technical specifications

Height (inches)

HTU600

Chimney connection base

Ladattavat dokumentit

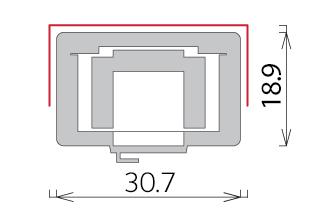

Dimensions (measurements on drawings below are in millimeters)
Width (inches) 30.7
Depth (inches) 18.9
Height (inches) 36
Weight (pounds) 1672
Firebox width (inches) 11.8
Firebox depth (inches) 10

Heating performance
Energy class A
Heated area, sq ft (depending on heating requirements) 300-550
Efficiency % LHV 77

Safety distances to combustibles
Safety distance, back, inches (can be reduced to 3" with a UL/ULC specified heat shield) 20
Safety distance, sides, inches (can be reduced to 3" with a UL/ULC specified heat shield) 20
Safety distance, top (inches) 20
Safety distance, front (inches) 48

Chimney connection and combustion air information
Recommended flue diameter, inches 6-7
A = The height of the flue connection measured from the floor to the center of the flue pipe
