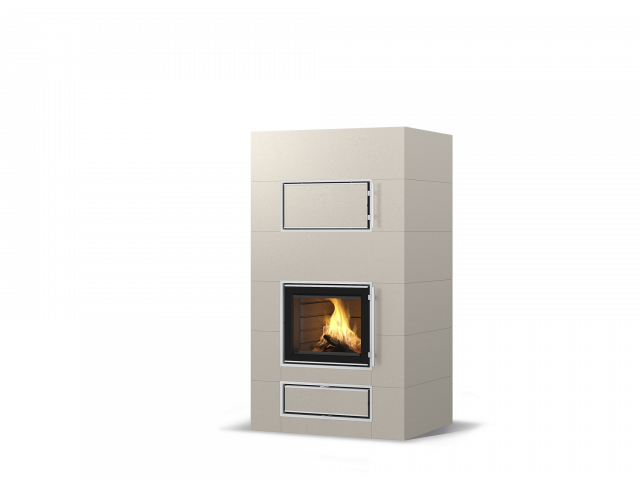

Rosamo V1

Rosamo V1

1800 Rubbing

Efficiency

87 %

Maximum amount of wood

18 kg

Area to be heated

50-100 m2

Energy intensity

66,3 kWh

Rosamo V1

1800 Rubbing

Efficiency

87 %

Maximum amount of wood

18 kg

Area to be heated

50-100 m2

Energy intensity

66,3 kWh

Rosamo V1

2100 Rubbing

Efficiency

87 %

Maximum amount of wood

18 kg

Area to be heated

50-100 m2

Energy intensity

66,3 kWh

Rosamo V1

2100 Rubbing

Efficiency

87 %

Maximum amount of wood

18 kg

Area to be heated

50-100 m2

Energy intensity

66,3 kWh

Rosamo V1

2100 Rubbing

Efficiency

87 %

Maximum amount of wood

18 kg

Area to be heated

50-100 m2

Energy intensity

67,3 kWh

Rosamo V1

2100 Rubbing

Efficiency

87 %

Maximum amount of wood

18 kg

Area to be heated

50-100 m2

Energy intensity

67,3 kWh

Technical specifications

Rosamo V1 18

Connection below

Dimensions
Width, mm 1000
Depth, mm 800 (850)
Height, mm 1800
Weight, kg 1500
Firebox width, mm 410
Firebox depth, mm 580
Width of the baking oven's firebox, mm 375
Depth of the baking oven's firebox, mm 500

Heat technology
Energy sign A+
Area to be heated, m2 50-100
Energy intensity, kWh 66,3
Nominal power (min-max), kW 1,8
Efficiency, % 87
CO, mg/Nm3 1000
Particles, mg/Nm3 25
OGC, mg/Nm3 53
NOx, mg/Nm3 112
Maximum amount of wood, kg 18
Firewood consumption, kg/h 5
Length of firewood, mm 330 (200-500)
Heat release time (h) 100% 7,8
Heat release time (h) 50% 25,6
Heat release time (h) 25% 38,1
Firewood length can vary between those shown in parentheses (XX mm)

Safety distances
Safety distances back (dR), mm 50 (0)
Safety distances side (dS), mm 50
Safety distances up, mm 100
Safety distances front (dP), mm 1050
Safety distance to the side on the front of the product (dS2), mm 100
Side radiation area (dL), mm 400
Safety distance shown in parentheses (0 mm) when installed against the wall with additional elements.

Chimney connection and combustion air information
Chimney recommendation, ø mm 150…210
Fire air intake from under the floor, connection size, ø mm 150
Average flue gas temperature °C 151
Max. flue gas temperature °C 323
Minimum draft of the flue, Pa. 12
Flue gas outlet temperature °C 181
The dimension of the duct connection opening, mm B 370
B = maximum dimension for the upper edge of the chimney opening from the floor (mm), E=The height of the flue connection measured from the floor to the center of the flue pipe.

Supplies
Cooking products Optional

Rosamo V1 18

Connection below

Dimensions
Width, mm 1000
Depth, mm 800 (850)
Height, mm 1800
Weight, kg 1500
Firebox width, mm 410
Firebox depth, mm 580
Width of the baking oven's firebox, mm 375
Depth of the baking oven's firebox, mm 500

Heat technology
Energy sign A+
Area to be heated, m2 50-100
Energy intensity, kWh 66,3
Nominal power (min-max), kW 1,8
Efficiency, % 87
CO, mg/Nm3 1000
Particles, mg/Nm3 25
OGC, mg/Nm3 53
NOx, mg/Nm3 112
Maximum amount of wood, kg 18
Firewood consumption, kg/h 5
Length of firewood, mm 330 (200-500)
Heat release time (h) 100% 7,8
Heat release time (h) 50% 25,6
Heat release time (h) 25% 38,1
Firewood length can vary between those shown in parentheses (XX mm)

Safety distances
Safety distances back (dR), mm 50 (0)
Safety distances side (dS), mm 50
Safety distances up, mm 100
Safety distances front (dP), mm 1050
Safety distance to the side on the front of the product (dS2), mm 100
Side radiation area (dL), mm 400
Safety distance shown in parentheses (0 mm) when installed against the wall with additional elements.

Chimney connection and combustion air information
Chimney recommendation, ø mm 150…210
Fire air intake from under the floor, connection size, ø mm 150
Average flue gas temperature °C 151
Max. flue gas temperature °C 323
Minimum draft of the flue, Pa. 12
Flue gas outlet temperature °C 181
The dimension of the duct connection opening, mm B 370
B = maximum dimension for the upper edge of the chimney opening from the floor (mm), E=The height of the flue connection measured from the floor to the center of the flue pipe.

Supplies
Cooking products Optional

Rosamo V1 21

Connection below

Dimensions
Width, mm 1000
Depth, mm 800 (850)
Height, mm 2100
Weight, kg 1750
Firebox width, mm 410
Firebox depth, mm 580
Width of the baking oven's firebox, mm 375
Depth of the baking oven's firebox, mm 500

Heat technology
Energy sign A+
Area to be heated, m2 50-100
Energy intensity, kWh 66,3
Nominal power (min-max), kW 1,8
Efficiency, % 87
CO, mg/Nm3 1000
Particles, mg/Nm3 25
OGC, mg/Nm3 53
NOx, mg/Nm3 112
Maximum amount of wood, kg 18
Firewood consumption, kg/h 5
Length of firewood, mm 330 (200-500)
Heat release time (h) 100% 7,8
Heat release time (h) 50% 25,6
Heat release time (h) 25% 38,1
Firewood length can vary between those shown in parentheses (XX mm)

Safety distances
Safety distances back (dR), mm 50 (0)
Safety distances side (dS), mm 50
Safety distances up, mm 100
Safety distances front (dP), mm 1050
Safety distance to the side on the front of the product (dS2), mm 100
Side radiation area (dL), mm 400
Safety distance shown in parentheses (0 mm) when installed against the wall with additional elements.

Chimney connection and combustion air information
Chimney recommendation, ø mm 150…210
Fire air intake from under the floor, connection size, ø mm 150
Average flue gas temperature °C 151
Max. flue gas temperature °C 323
Minimum draft of the flue, Pa. 12
Flue gas outlet temperature °C 181
The dimension of the duct connection opening, mm B 370
B = maximum dimension for the upper edge of the chimney opening from the floor (mm), E=The height of the flue connection measured from the floor to the center of the flue pipe.

Supplies
Cooking products Optional

Rosamo V1 21

Connection below

Dimensions
Width, mm 1000
Depth, mm 800 (850)
Height, mm 2100
Weight, kg 1750
Firebox width, mm 410
Firebox depth, mm 580
Width of the baking oven's firebox, mm 375
Depth of the baking oven's firebox, mm 500

Heat technology
Energy sign A+
Area to be heated, m2 50-100
Energy intensity, kWh 66,3
Nominal power (min-max), kW 1,8
Efficiency, % 87
CO, mg/Nm3 1000
Particles, mg/Nm3 25
OGC, mg/Nm3 53
NOx, mg/Nm3 112
Maximum amount of wood, kg 18
Firewood consumption, kg/h 5
Length of firewood, mm 330 (200-500)
Heat release time (h) 100% 7,8
Heat release time (h) 50% 25,6
Heat release time (h) 25% 38,1
Firewood length can vary between those shown in parentheses (XX mm)

Safety distances
Safety distances back (dR), mm 50 (0)
Safety distances side (dS), mm 50
Safety distances up, mm 100
Safety distances front (dP), mm 1050
Safety distance to the side on the front of the product (dS2), mm 100
Side radiation area (dL), mm 400
Safety distance shown in parentheses (0 mm) when installed against the wall with additional elements.

Chimney connection and combustion air information
Chimney recommendation, ø mm 150…210
Fire air intake from under the floor, connection size, ø mm 150
Average flue gas temperature °C 151
Max. flue gas temperature °C 323
Minimum draft of the flue, Pa. 12
Flue gas outlet temperature °C 181
The dimension of the duct connection opening, mm B 370
B = maximum dimension for the upper edge of the chimney opening from the floor (mm), E=The height of the flue connection measured from the floor to the center of the flue pipe.

Supplies
Cooking products Optional

Rosamo T V1 21

Top connection

Dimensions
Width, mm 1000
Depth, mm 800 (850)
Height, mm 2100
Weight, kg 1810
Firebox width, mm 410
Firebox depth, mm 580
Width of the baking oven's firebox, mm 375
Depth of the baking oven's firebox, mm 500

Heat technology
Energy sign A+
Area to be heated, m2 50-100
Energy intensity, kWh 67,3
Nominal power (min-max), kW 2,1
Efficiency, % 87
CO, mg/Nm3 875
Particles, mg/Nm3 30
OGC, mg/Nm3 61
NOx, mg/Nm3 115
Maximum amount of wood, kg 18
Firewood consumption, kg/h 5
Length of firewood, mm 330 (200-500)
Heat release time (h) 100% 5,4
Heat release time (h) 50% 22,4
Heat release time (h) 25% 35,1
Firewood length can vary between those shown in parentheses (XX mm)

Safety distances
Safety distances back (dR), mm 50 (0)
Safety distances side (dS), mm 50
Safety distances up, mm 100
Safety distances front (dP), mm 1050
Safety distance to the side on the front of the product (dS2), mm 100
Side radiation area (dL), mm 400
Safety distance shown in parentheses (0 mm) when installed against the wall with additional elements.

Chimney connection and combustion air information
Chimney recommendation, ø mm 150…210
Top connection, mm 150
Maximum weight of top connection flue, kg 750
Fire air intake from under the floor, connection size, ø mm 150
Average flue gas temperature °C 141
Max. flue gas temperature °C 350
Minimum draft of the flue, Pa. 12
Flue gas outlet temperature °C 169
The dimension of the duct connection opening, mm E 1900
B = maximum dimension for the upper edge of the chimney opening from the floor (mm), E=The height of the flue connection measured from the floor to the center of the flue pipe.

Supplies
Ignition damper Standard equipment
Cooking products Optional
Cooking products Optional

Rosamo T V1 21

Top connection

Dimensions
Width, mm 1000
Depth, mm 800 (850)
Height, mm 2100
Weight, kg 1810
Firebox width, mm 410
Firebox depth, mm 580
Width of the baking oven's firebox, mm 375
Depth of the baking oven's firebox, mm 500

Heat technology
Energy sign A+
Area to be heated, m2 50-100
Energy intensity, kWh 67,3
Nominal power (min-max), kW 2,1
Efficiency, % 87
CO, mg/Nm3 875
Particles, mg/Nm3 30
OGC, mg/Nm3 61
NOx, mg/Nm3 115
Maximum amount of wood, kg 18
Firewood consumption, kg/h 5
Length of firewood, mm 330 (200-500)
Heat release time (h) 100% 5,4
Heat release time (h) 50% 22,4
Heat release time (h) 25% 35,1
Firewood length can vary between those shown in parentheses (XX mm)

Safety distances
Safety distances back (dR), mm 50 (0)
Safety distances side (dS), mm 50
Safety distances up, mm 100
Safety distances front (dP), mm 1050
Safety distance to the side on the front of the product (dS2), mm 100
Side radiation area (dL), mm 400
Safety distance shown in parentheses (0 mm) when installed against the wall with additional elements.

Chimney connection and combustion air information
Chimney recommendation, ø mm 150…210
Top connection, mm 150
Maximum weight of top connection flue, kg 750
Fire air intake from under the floor, connection size, ø mm 150
Average flue gas temperature °C 141
Max. flue gas temperature °C 350
Minimum draft of the flue, Pa. 12
Flue gas outlet temperature °C 169
The dimension of the duct connection opening, mm E 1900
B = maximum dimension for the upper edge of the chimney opening from the floor (mm), E=The height of the flue connection measured from the floor to the center of the flue pipe.

Supplies
Ignition damper Standard equipment
Cooking products Optional
Cooking products Optional

Instructions & files

Manual Download
DXF Footprint Download
Performance level declaration, Dop Download
Eco-design product information Download
Energy sign Download
Declaration of conformity Download
